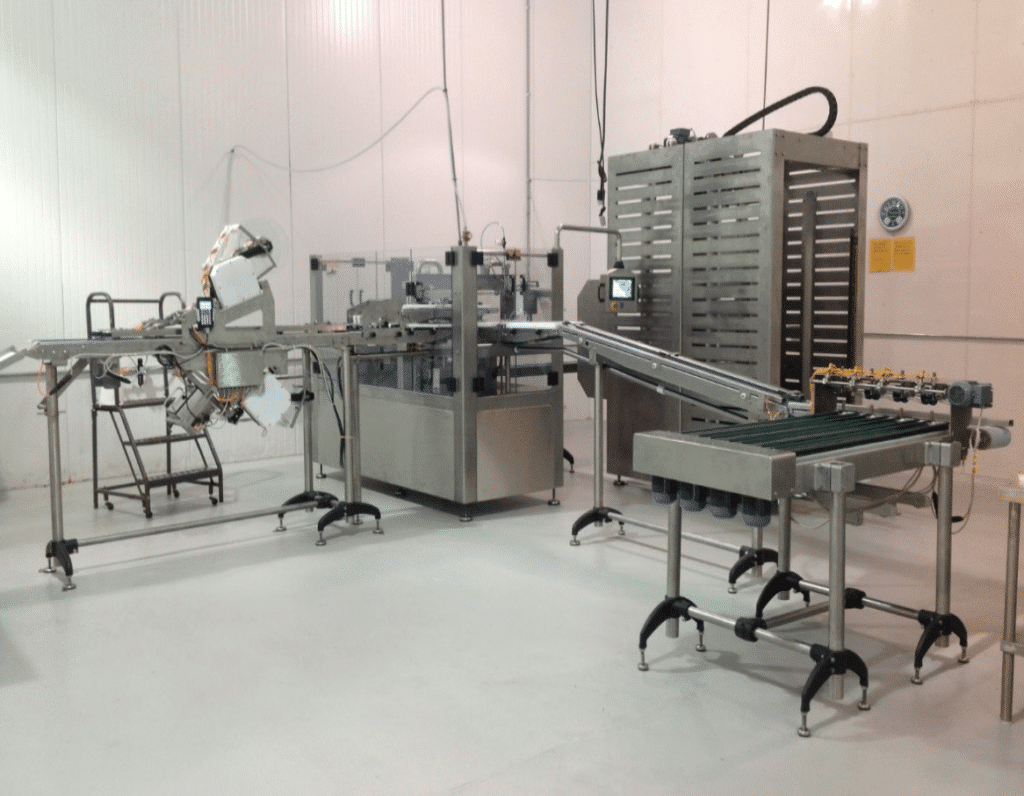

splash duo 80 wrapping machine
5 000 cheeses / hour
Multi-format machine
with integrated boxing
especially designed for packaging cheeses
of all geometric shapes
tooling :
- 1 folding plate
- 1 folding device
- 4 clips mounted on a plate
- 1 pre-folder
- 1 piston with fast disassembly
- 1 roll support
description
- The boxing module is integrated in the packaging machine. The boxes arrive from the hopper on a conveyor and are pushed into the tray by a linear movement.
- The supply of the cheeses is done flat and is suspended with bands. Everything can be dismantled for cleaning. 100% Brushless mechanics (no maintenance, mechanics without play)
Silent machine. - The frame is made of stainless steel 304L
- Conform to the European directives as regards safety and the standards relating to hygiene (EC).
- Cutting system by rolling knife
- IP 65 stainless steel electrical cabinet with MOTION CONTROLLER OMRON
technical characteristics
| Max speed | 5 000 cheeses / hour |
| Paper size | 440 x 440 mm MAX |
| Energy | 220V |
| Air | 6 Bars |
| Touch screen 8’’ | OMRON |
| Brushless motor | OMRON |
| Pneumatic | SMC/FESTO |
| Cell | IFM/SICK |
| Drive | OMRON |
